Glazed Tile Metal Roof Profile Roll Forming Machine
Home > Products > Metal Display Stand > Glazed Tile Metal Roof Profile Roll Forming Machine

Glazed Tile Metal Roof Profile Roll Forming Machine


  • Glazed Tile Metal Roof Profile Roll Forming Machine
  • Glazed Tile Metal Roof Profile Roll Forming Machine
  • Glazed Tile Metal Roof Profile Roll Forming Machine
  • Glazed Tile Metal Roof Profile Roll Forming Machine
  • Glazed Tile Metal Roof Profile Roll Forming Machine

Glazed Tile Metal Roof Profile Roll Forming Machine

    Payment Type: L/C,T/T
    Terms of Trade: FOB,CIF
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days
    Packaging: one 20ft container for loading one set machine with manual decoiler
    Productivity: 30 Sets/Month
    Brand: Hongyuan
    Transportation: Ocean
    Place of Origin: Hebei,China
    Supply Ability: 30 Sets/Month
    Certificate: ISO
    Port: Tianjin Sea Port

Basic Info

Model No.: Glazed

Product Description

Glazed Tile Metal Roof Profile Roll Forming Machine

The roof panels made by glazed roof roll forming machine can be widely used in Industrial and civil buildings, warehouse, special construction, large span steel structure house as the roof,walls or interior and exterior decoration. The thickness of materials can be from 0.3 mm to 0.8 mm, width can be 914 mm,1000 mm,1200 mm,1100mm,1220 mm,1250 mm. This is the common and standard sizes. This roll forming machine is for the material of 1200 mm. We can design according to your require,please send me your profile drawing.

Glazed Tile Forming

Glazed Tile Roll Forming Machine Parameters :

Name

1100 glazed tile roll forming machine

Material Spec

Galvanized steel,color steel

Input Width

1200mm

Coil thickness

0.3-0.8mm

Forming speed

3-4m/min

Main power

4kw with drive shaft

Hydraulic power

3kw

Roll stand

13 rows

Roller material

high grade No.45 forged steel, with 0.05mm plated coating

Shaft material

high grade No.45 forged steel,diameter 70mm

Size length*width*high

6*1.5m*1.2m

Total Weight

2.5T

Voltage

380 volt or as you need


We can design according to your require,please send me your profile drawing.

process

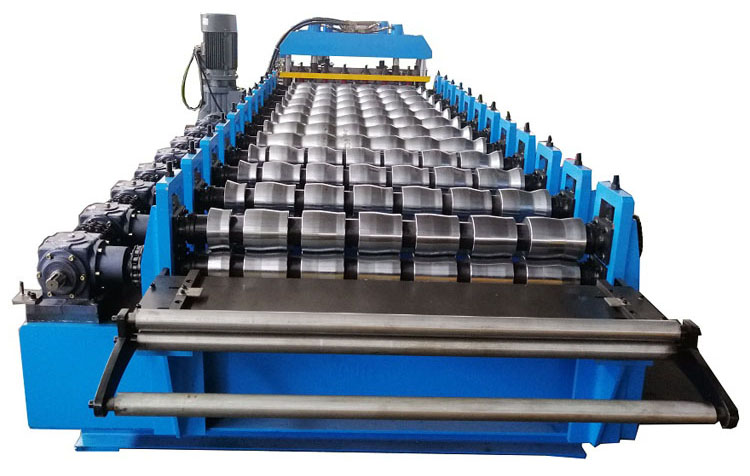

Glazed Tile Roll Forming Machine Display :

Glazed Tile Machine

1.Cutting System

Material of blade:Cr12Mov which has high strength and durable quality.

It can cut suitable panel length according to the oil pump and PLC control system.

Glazed Sheet Forming Machine

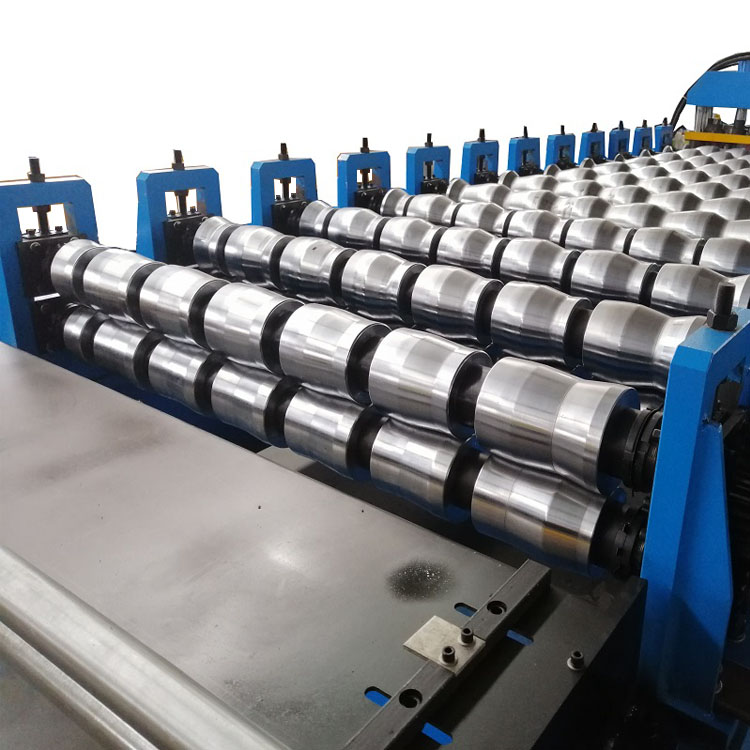

2.Roller System

Material of roller:#45 hard chrome plating steel
Roller stations:13 rows
Thickness:0.3-0.8mm

Glazed Tile Sheet Machine

3.Feeding Table

It used to control the width and position of the steel sheet.

The sheet is guided into the machine with correct position,to make sure the sheet is neat and parallel.

Roller System

4.Computer Control Cabinet

Programmable setting of profile Length and quantity.

Computer mode has two modes:automatic and manual one

Language:according to client's require

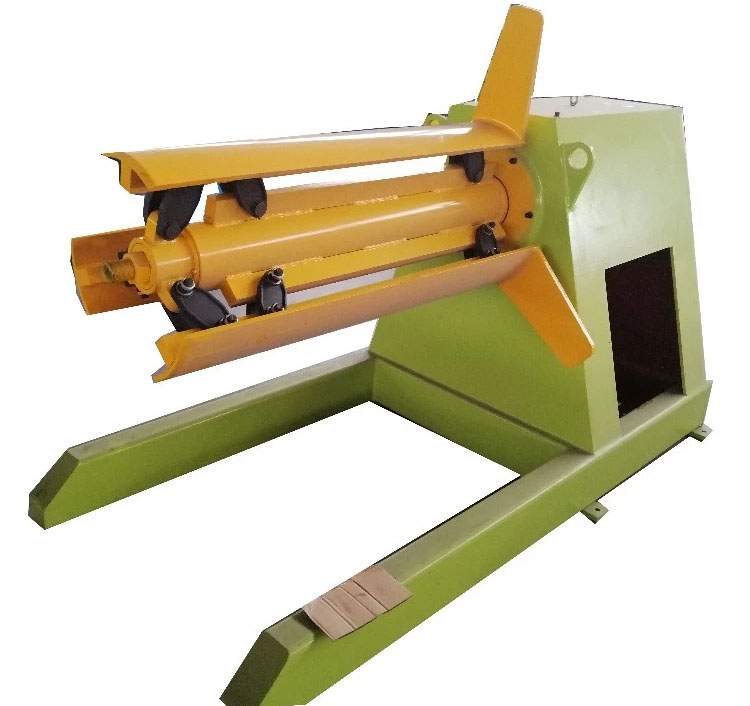

Hydraulic Decoiler

5.Hydraulic Decoiler

Loading capacity:5tons

Inner diamater:450-508mm

Type:hydraulic decoiler

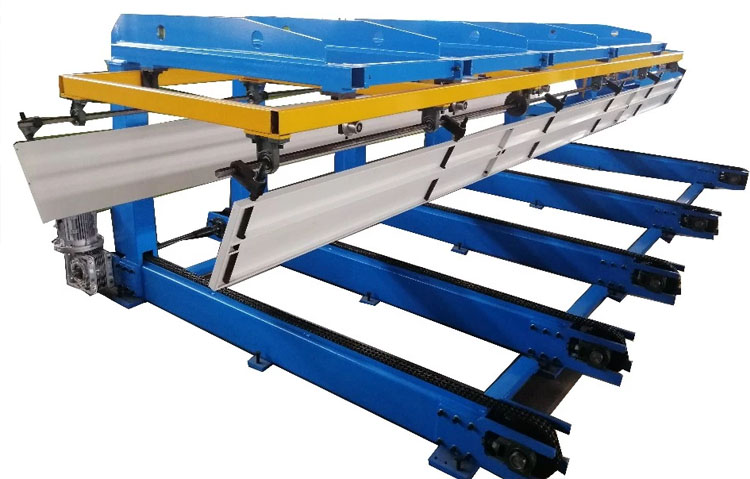

Auto stacker

6.Auto stacker

3m,6m or as your need



Company Profile

Botou Hongyuan Forming Machine Co.,Ltd has been established in 2005 as a professional manufacturers of roof tile roll forming machine . We use AUTO CAD design software. With more then 10 years of experiences and strict quality control, our roof sheet roll forming machines meet International Standard. We are the leading manufacturer and reported of roll forming machine in China. We manufacture various kinds of roll forming machine for producing the following products.Our Roll Forming Machine contain Glazed Roof Tile Roll Forming Machine,Trapezoidal Roll Forming Machine ,Corrugated Roll Forming Machine , Double Layers Roll Forming Machine ,C Z Purlin Roll Forming Machine , Steel Structure Floor Deck Forming Machine etc.

Factory Show


Packaging Details:

1. one 40ft container for loading one set machine with manual decoiler;
2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.
